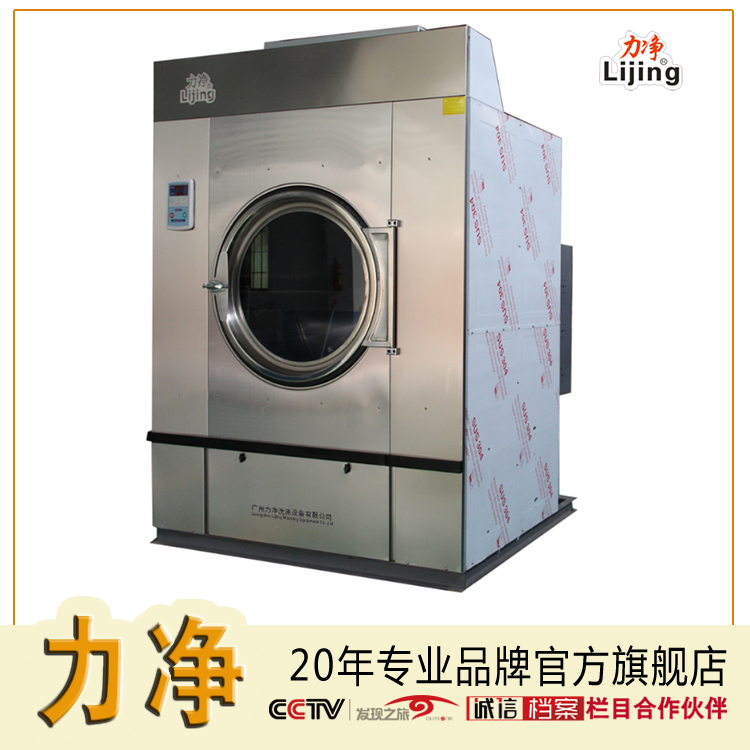

This series of industrial drying machine made of stainless steel, reduce fabric wear. Its outstanding advantages are:
1.An optimization design cooling and fan, large size heater, fast heat exchange and use of high-energy, fast heating, drying time is short.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature dryer, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection network, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
HGR series fully automatic gas dryer
Gas Dryer is our newly developed energy-saving products, ease of use, wide range of energy conservation. Its outstanding advantages are:
A high thermal efficiency, ease of use, the use of gas heating, low energy consumption, fast heat exchange and heat utilization is high.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection networks, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
6 Use two V-belt gear transmission, low noise, small vibration, long working life, easy maintenance.
型 號 Model
HG-15
HG-25
HG-35
HG-50
HG-70
HG-100
額定容量(KG) Rated capacity
15
25
35
50
70
100
加熱方式
Heating method
Q/D/R
S/E/G
S/E/G
S/E/G
S/E/G
S/E/G
滾筒直徑(mm)
Roller diameter
Ф750
Ф970
Ф970
Ф1150
Ф1200
Ф1450
滾筒深度(mm)
Roller depth
670
650
900
970
980
1220
轉筒速度(r/min)
drum speed
45
42
42
36
32
30
蒸汽壓力(mpa)
steam pressure
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
額定電壓(V)
rated voltage
380
380
380
380
380
380
主電機功率(KW) motor power
0.55
0.75
0.75
1.1
1.1
2.2
風機功率(KW) fan power
0.55
0.75
0.75
1.5
1.1
1.5X2
加熱功率(KW) heating power
14
24
32
35
44
50
燃氣耗量(kw)
gas consumption
2
2.5
3.5
4.5
4.5
4.5
進蒸汽口徑(mm)
steam inlet
DN32
DN32
DN32
DN32
DN32
DN32
疏水口徑(mm)
Hydrophobic caliber
DN25
DN25
DN25
DN25
DN50
DN50
壓縮空氣接口口徑(mm)
Compressed air interface
Ф6
Ф6
Ф6
Ф6
Ф6
Ф6
排風管口徑(mm)
Exhaust duct diameter
Ф160
Ф170
Ф170
Ф200
Ф275
Ф275
外形尺寸(寬)mm
Dimension (with)
840
1060
1060
1240
1600
1625
外形尺寸(深)mm
Dimension(depth)
1150
1150
1450
1600
1780
1810
外形尺寸(高)mm
Dimension (height)
1560
1950
1950
2150
2500
2510
重量(KG) Weight
380
450
520
650
1000
1400
型號說明:Q-蒸汽加熱,D-電加熱,R-燃氣 Model Note: Q: steam heating, D-electric heating, R-gas heating
